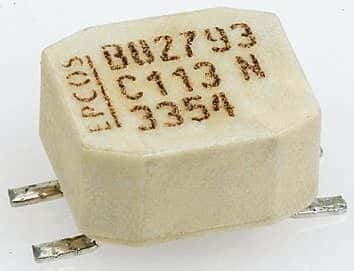

Telecom signal filter, common mode choke, featuring 1mH inductance with a -30% tolerance. This SMD/SMT component operates with a 700mA current rating and a 42V AC voltage rating, up to 80V DC. Designed with a ferrite core, it offers a wide operating temperature range from -40°C to 125°C and is RoHS compliant. The filter is packaged in tape and reel for efficient assembly.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK B82793C0105N265 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Core Material | Ferrite |
| Current Rating | 700mA |
| DC Current | 700mA |
| Depth | 9.4mm |
| Height | 4.8mm |
| Inductance | 1mH |
| Inductance Tolerance | -30% |
| Inductor Type | COMMON MODE CHOKE |
| Length | 6mm |
| Max Current Rating | 700mA |
| Max DC Current | 700mA |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Number of Lines | 2 |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | B82793 |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 50% |
| Voltage Rating | 42V |
| Voltage Rating (AC) | 42V |
| DC Rated Voltage | 80V |
| Weight | 0.008818oz |
| Width | 6mm |
| RoHS | Compliant |
