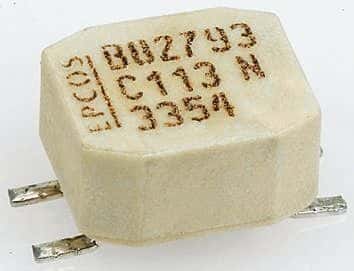

This 2-line signal filter from TDK has a 25uH inductance and is rated for 800mA. It is packaged in SMD/SMT form and is available in quantities of 3000. The filter operates between -40°C and 125°C and is compliant with AEC-Q200 ratings. It is also RoHS compliant but does not meet Reach SVHC standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK B82793S0253N201 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Current Rating | 800mA |
| Height | 4.8mm |
| Inductance | 25uH |
| Length | 7.1mm |
| Max Current Rating | 800mA |
| Max DC Current | 800mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | B82793 |
| Termination | SMD/SMT |
| Tolerance | 30% |
| Voltage Rating (AC) | 42V |
| DC Rated Voltage | 80V |
| Weight | 0.008818oz |
| Width | 6mm |
| RoHS | Compliant |
