Technical Specifications
TDK B82801A824A100 technical specifications.
General
| Current Rating | 7A |
| DC Resistance (DCR) | 8.7R |
| Depth | 4.1mm |
| Height | 3.5mm |
| Height - Seated (Max) | 3.5mm |
| Inductance | 820uH |
| Lead Free | Lead Free |
| Lead/Base Style | Gull Wing |
| Length | 4.7mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Frequency | 0.05 to 1 MHz |
| Package Quantity | 600 |
| Packaging | Tape and Reel |
| Series | B82801A |
| Termination | SMD/SMT |
| Transformer Type | CURRENT SENSE TRANSFORMER |
| Turns Ratio | 1:100 |
| Width | 3.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK B82801A824A100 Datasheet
Download the complete datasheet for TDK B82801A824A100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

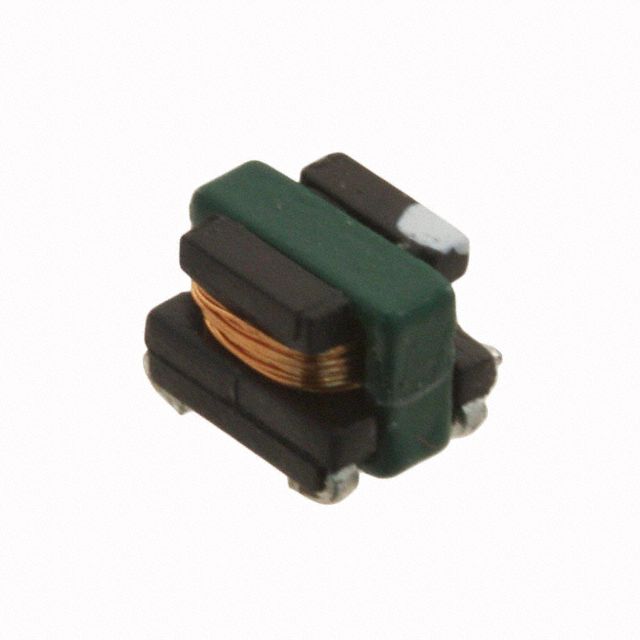

Product Images
