Single-phase EMI/RFI power line filter designed for 250V AC operation at 50/60Hz. Features a 16A current rating, 1.8mH inductance, and 470nF capacitance. Chassis mountable with flanges and quick connect terminations. Operates across a temperature range of -25°C to 100°C. Metal package construction with dimensions of 52mm length, 52mm width, and 89.5mm depth.
Frequency50 Hz, 60 Hz
Current16A
Capacitance470nF
Voltage Rating250V
Quick Jump:
Technical Specifications
TDK B84112G0000B116 technical specifications.
General
| Capacitance | 470nF |
| Current | 16A |
| Current Rating | 16A |
| Depth | 89.5mm |
| Filter Type | STANDARD |
| Inductance | 1.8mH |
| Lead Free | Lead Free |
| Length | 52mm |
| Max Current Rating | 16A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Flanges |
| Operating Frequency | 50 Hz, 60 Hz |
| Package Quantity | 24 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | B84112G |
| Termination | Quick Connect |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 52mm |
Compliance
| RoHS | Not Compliant |
Datasheet
TDK B84112G0000B116 Datasheet
Download the complete datasheet for TDK B84112G0000B116 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

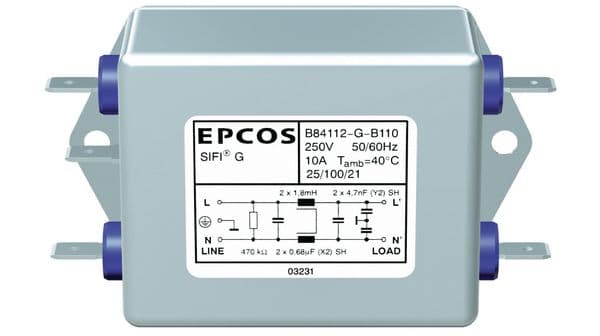

Product Images
