2-electrode gas discharge tube offering 90V DC maximum voltage rating and 5kA peak pulse current capability. Features a low capacitance of 1.5pF and operates across a wide temperature range of -40°C to 90°C. This through-hole component with axial termination is designed for circuit protection applications. It boasts a 5A AC current rating and a 20% tolerance.
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B88069X0720S102 technical specifications.
General
| Diameter | 8mm |
| Fail Short | No |
| Length | 6.05mm |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 90V |
| Mount | Through Hole |
| Number of Poles | 2 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Peak Pulse Current | 10kA |
| RoHS Compliant | Yes |
| Series | EC90X |
| Termination | Axial |
| Tolerance | 20% |
Compliance
| RoHS | Compliant |
Datasheet
TDK B88069X0720S102 Datasheet
Download the complete datasheet for TDK B88069X0720S102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

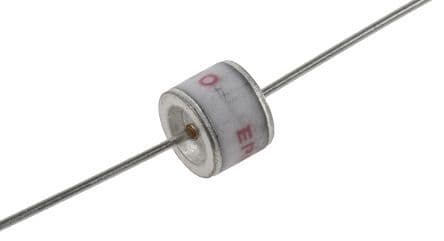

Product Images
