Surface mount gas discharge tube offering 90V DC maximum voltage rating and 25kA peak pulse current capability. Features a 1.5pF capacitance and 2 poles, designed for circuit protection. Operates within a temperature range of -40°C to 90°C, with lead-free and RoHS compliance. Packaged in tape and reel for efficient assembly.
PackageSMD/SMT
Capacitance1.5pF
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK B88069X1630T602 technical specifications.
General
| Capacitance | 1.5pF |
| Package/Case | SMD/SMT |
| Contact Plating | Tin, Matte |
| Depth | 8.3mm |
| Diameter | 8.3mm |
| Fail Short | No |
| Height | 8.3mm |
| Lead Free | Lead Free |
| Length | 6.05mm |
| Min Breakdown Voltage | 90V |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 90V |
| Mount | Surface Mount |
| Number of Poles | 2 |
| Package Quantity | 600 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 25kA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | A80-C90XSMD |
| Termination | SMD/SMT |
| Tolerance | 20% |
Compliance
| RoHS | Compliant |
Datasheet
TDK B88069X1630T602 Datasheet
Download the complete datasheet for TDK B88069X1630T602 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

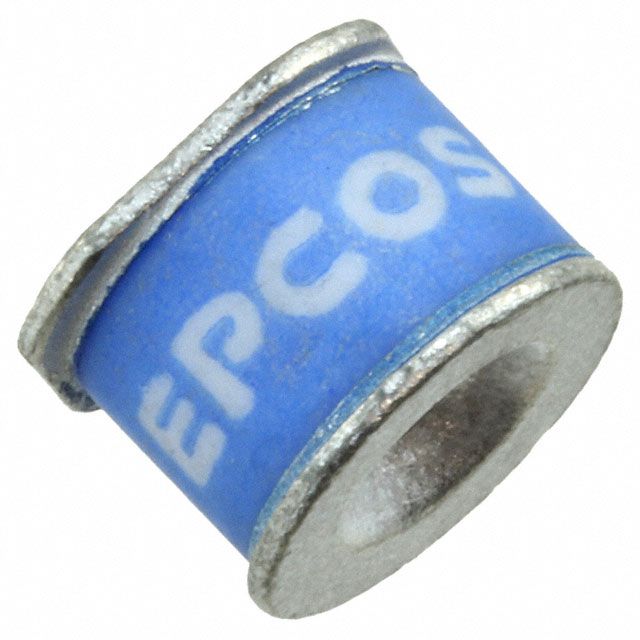

Product Images
