Surface mount multilayer ceramic capacitor with 220nF capacitance and 25V DC rating. Features X5R dielectric, 20% tolerance, and operates from -55°C to 85°C. Packaged in a 0201 (0603 metric) case with lead-free and RoHS compliant termination. Low ESR and tape and reel packaging available.
Package0201
Capacitance220nF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C0603X5R1E224M030BC technical specifications.
General
| Capacitance | 220nF |
| Case Code (Imperial) | 0201 |
| Case Code (Metric) | 0603 |
| Package/Case | 0201 |
| Core Architecture | 8051 |
| Dielectric | X5R |
| Dielectric Material | Ceramic |
| Height | 0.3mm |
| Interface | I2C, UART, USART, SMBus, 2-Wire |
| Lead Free | Lead Free |
| Length | 0.024inch |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Memory Size | 2KB |
| Memory Type | OTP, |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of I/Os | 8 |
| Oscillator Type | Internal |
| Package Quantity | 122 |
| Packaging | Tape and Reel |
| Peripherals | POR, PWM, WDT |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.013inch |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Weight | 7.1E-05oz |
| Width | 0.012inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK C0603X5R1E224M030BC Datasheet
Download the complete datasheet for TDK C0603X5R1E224M030BC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

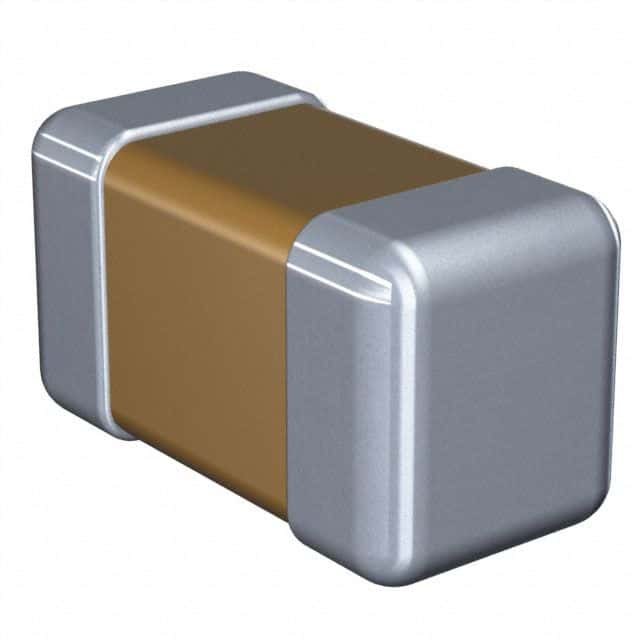

Product Images
