Multilayer Ceramic Capacitor (MLCC) with 33pF capacitance and 50V DC rating. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range. Surface mountable in a 0402 (1005 metric) case with 2% capacitance tolerance and low ESR. Packaged in tape and reel for automated assembly. Lead-free and RoHS compliant.
Package0402
Capacitance33pF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C1005C0G1H330G050BA technical specifications.
General
| Capacitance | 33pF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Depth | 0.5mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Length | 1mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.022inch |
| Tolerance | 2% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 2.3E-05oz |
| Width | 0.02inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK C1005C0G1H330G050BA Datasheet
Download the complete datasheet for TDK C1005C0G1H330G050BA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

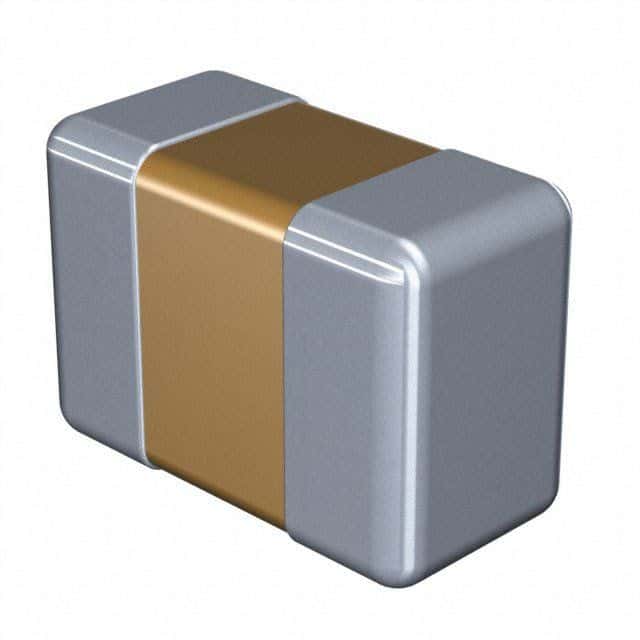

Product Images
