Multilayer Ceramic Capacitor (MLCC) with 4.7µF capacitance and 4V DC voltage rating. Features X6S dielectric for stable performance across a wide temperature range (-55°C to 105°C). Surface mountable in a compact 0402 (1005 metric) case code, measuring 1mm x 0.5mm x 0.5mm. Offers 20% capacitance tolerance and is supplied on tape and reel.
Package0402
Capacitance4.7uF
Voltage Rating4V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C1005X6S0G475M050BC technical specifications.
General
| Capacitance | 4.7uF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Depth | 0.5mm |
| Dielectric | X6S |
| Dielectric Material | Ceramic |
| Lead Free | Lead Free |
| Length | 1mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 500um |
| Tolerance | 20% |
| Voltage Rating | 4V |
| DC Rated Voltage | 4V |
| Weight | 2.3E-05oz |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK C1005X6S0G475M050BC Datasheet
Download the complete datasheet for TDK C1005X6S0G475M050BC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

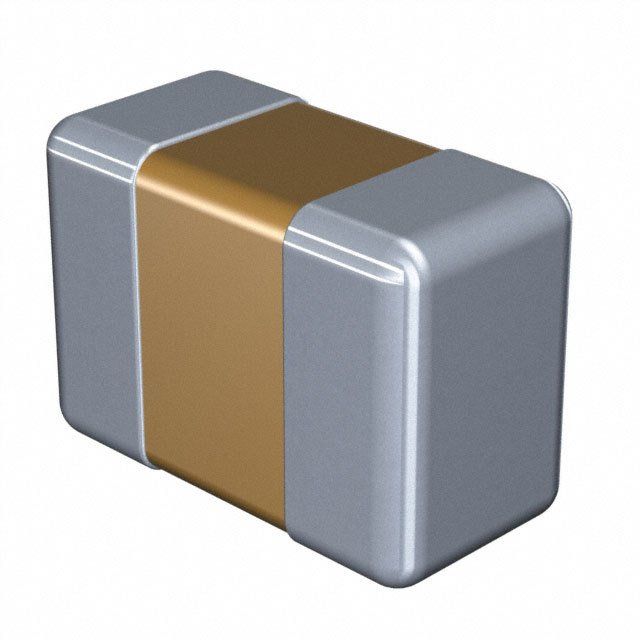

Product Images
