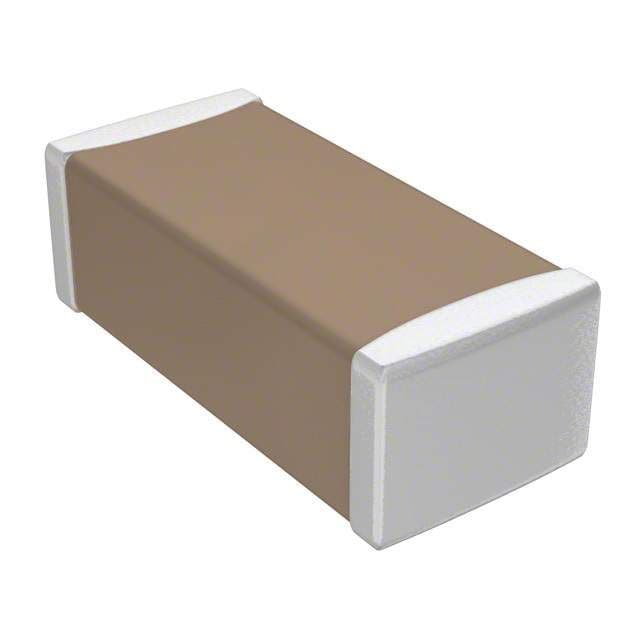

Multilayer Ceramic Capacitor (MLCC) with 6pF capacitance and 50V DC rating. Features C0G dielectric for stable performance across a wide temperature range (-55°C to 125°C). Surface mountable in a 0603 (1608 metric) case code, offering low ESR and a flat construction. Packaged on tape and reel for automated assembly.
Package0603
Capacitance6pF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C1608C0G1H060C080AA technical specifications.
General
| Capacitance | 6pF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.8mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.037inch |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 7.1E-05oz |
| Width | 0.031inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK C1608C0G1H060C080AA Datasheet
Download the complete datasheet for TDK C1608C0G1H060C080AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
