Multilayer ceramic capacitor with 2.2nF capacitance and 50V DC rating. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range. This 0603 (1608 metric) surface mount component offers 5% tolerance and low ESR. Packaged in tape and reel for automated assembly.
Package0603
Voltage50V
Capacitance2.2nF
Voltage Rating50V
Quick Jump:
Technical Specifications
TDK C1608C0G1H222J080AA technical specifications.
General
Capacitance
2.2nF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Flat
Depth
0.8mm
Dielectric
C0G
Dielectric Material
Ceramic
Height
0.8mm
Lead Free
Lead Free
Length
1.6mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C
Termination
SMD/SMT
Tolerance
5%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Weight
7.1E-05oz
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
TDK C1608C0G1H222J080AA Datasheet
Download the complete datasheet for TDK C1608C0G1H222J080AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

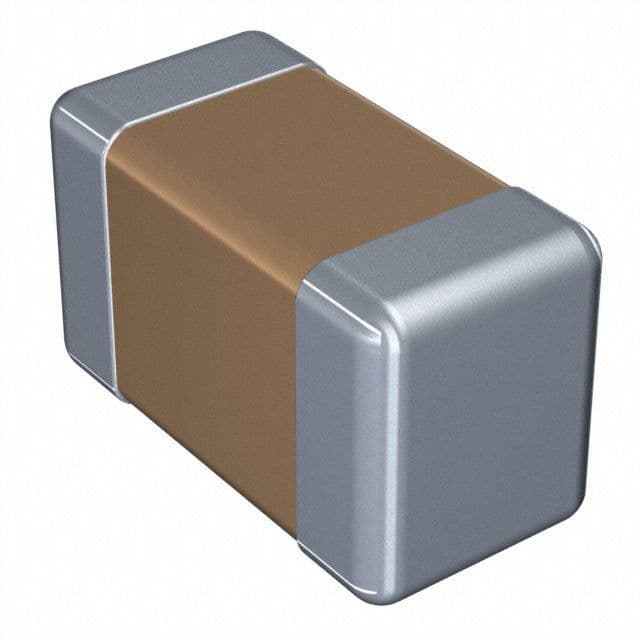

Product Images
