Multilayer Ceramic Capacitor (MLCC) with 10µF capacitance and 25V DC rated voltage. Features X5R dielectric, 20% tolerance, and a 0603 (1608 metric) SMD package. Operates from -55°C to 85°C with low ESR and flat construction. Supplied in tape and reel packaging.
Package0603
Capacitance10uF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C1608X5R1E106M080AC technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Dielectric | X5R |
| Height | 0.8mm |
| Length | 1.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Weight | 7.1E-05oz |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK C1608X5R1E106M080AC Datasheet
Download the complete datasheet for TDK C1608X5R1E106M080AC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

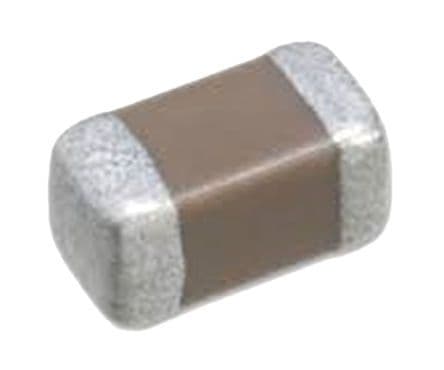

Product Images
