Multilayer Ceramic Capacitor (MLCC) with 4.7µF capacitance and 10V voltage rating. Features X5R dielectric with 10% tolerance, housed in a 0805 (2012 metric) SMD package. Operates from -55°C to 85°C, offering low ESR and lead-free construction. Packaged in tape and reel for automated assembly.
Package0805
Capacitance4.7uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C2012X5R1A475K125AA technical specifications.
General
| Capacitance | 4.7uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X5R |
| Dielectric Material | Ceramic |
| Height | 1.25mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Thickness | 0.057inch |
| Tolerance | 10% |
| Voltage Rating | 10V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK C2012X5R1A475K125AA Datasheet
Download the complete datasheet for TDK C2012X5R1A475K125AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

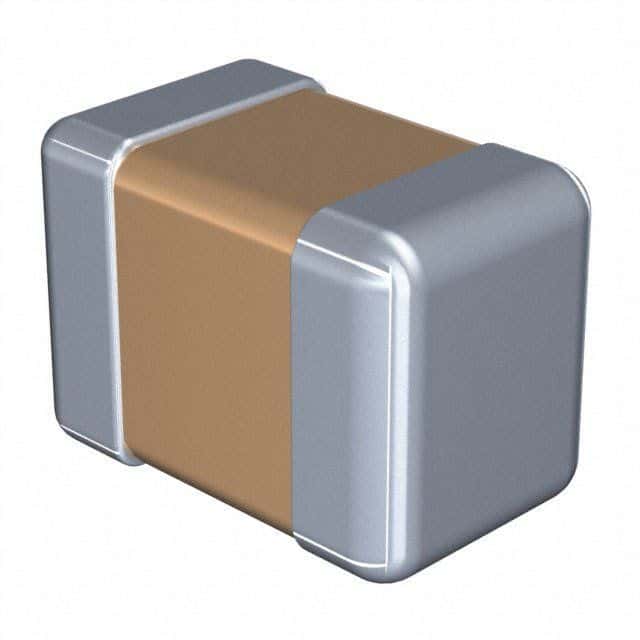

Product Images
