Multilayer Ceramic Capacitor (MLCC) with 3.3µF capacitance and 50V DC rating. Features X5R dielectric for stable performance across a -55°C to 85°C temperature range, with 10% tolerance. This surface mount component utilizes a 0805 (2012 metric) case code and offers low ESR. Packaged in tape and reel for automated assembly.
Package0805
Capacitance3.3uF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C2012X5R1H335K125AB technical specifications.
General
| Capacitance | 3.3uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X5R |
| Dielectric Material | Ceramic |
| Height | 1.25mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.000194oz |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK C2012X5R1H335K125AB Datasheet
Download the complete datasheet for TDK C2012X5R1H335K125AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

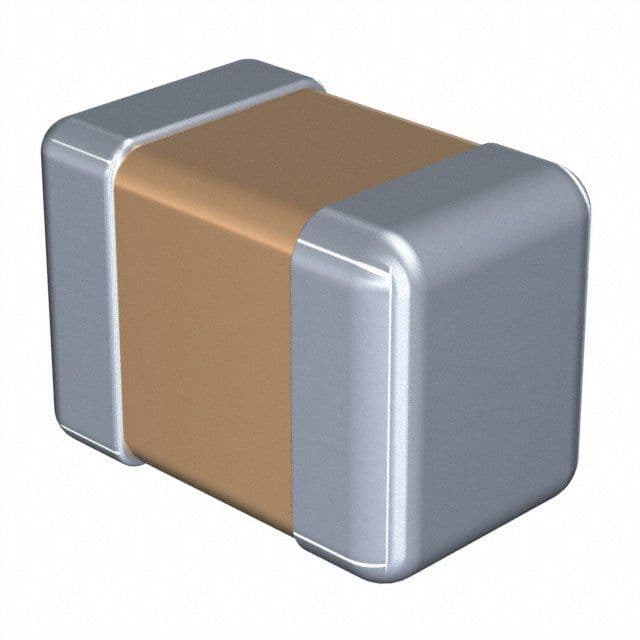

Product Images
