Multilayer Ceramic Capacitor (MLCC) with 4.7µF capacitance and 16V DC rating. Features X7R dielectric for stable performance across a -55°C to 125°C operating temperature range. Surface mountable in an 0805 (2012 metric) case code with 10% tolerance. Low ESR, lead-free, and RoHS compliant, supplied on tape and reel.
Package0805
Capacitance4.7uF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C2012X7R1C475K125AB technical specifications.
General
Capacitance
4.7uF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Construction
Flat
Depth
1.25mm
Dielectric
X7R
Dielectric Material
Ceramic
Height
1.25mm
Lead Free
Lead Free
Length
2mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C
Termination
SMD/SMT
Thickness
0.057inch
Tolerance
10%
Voltage Rating
16V
DC Rated Voltage
16V
Weight
0.000194oz
Width
0.049inch
Compliance
RoHS
Compliant
Datasheet
TDK C2012X7R1C475K125AB Datasheet
Download the complete datasheet for TDK C2012X7R1C475K125AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

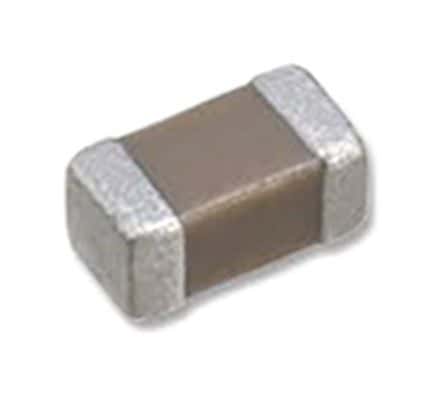

Product Images
