Multilayer Ceramic Capacitor (MLCC) with 68nF capacitance and 50V DC rating. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range. This 1206 (3216 metric) case code component offers 5% tolerance and is designed for surface mount (SMD/SMT) applications. Packaged in tape and reel, this lead-free, RoHS compliant capacitor is ideal for low ESR requirements.
Package1206
Capacitance68nF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C3216C0G1H683J160AA technical specifications.
General
| Capacitance | 68nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.075inch |
| Tolerance | 5% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.000571oz |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK C3216C0G1H683J160AA Datasheet
Download the complete datasheet for TDK C3216C0G1H683J160AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

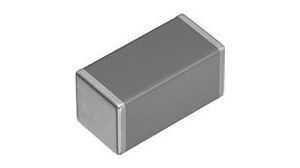

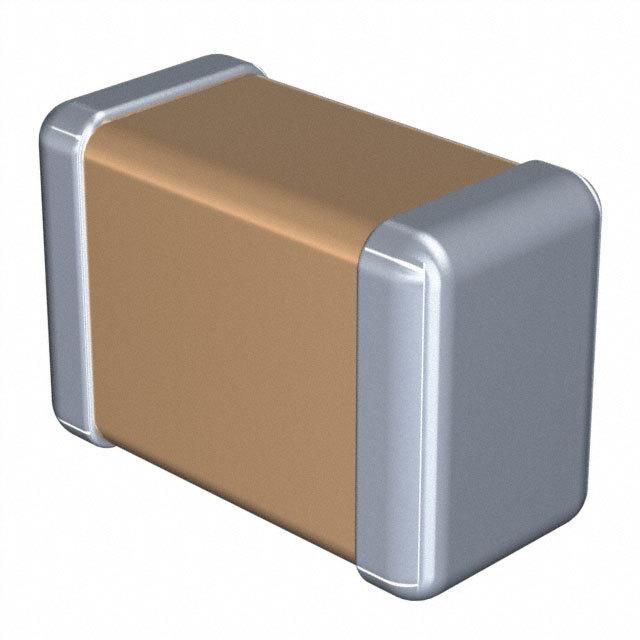

Product Images
