Multilayer Ceramic Capacitor (MLCC) with 33µF capacitance and 16V DC rating. Features X5R dielectric material and 20% tolerance. Designed for surface mount applications with a 1206 imperial (3216 metric) case code. Operates across a temperature range of -55°C to 85°C. Packaged in tape and reel for automated assembly.
Package1206
Capacitance33uF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C3216X5R1C336M160AB technical specifications.
General
| Capacitance | 33uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X5R |
| Dielectric Material | Ceramic |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Weight | 0.000571oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK C3216X5R1C336M160AB Datasheet
Download the complete datasheet for TDK C3216X5R1C336M160AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

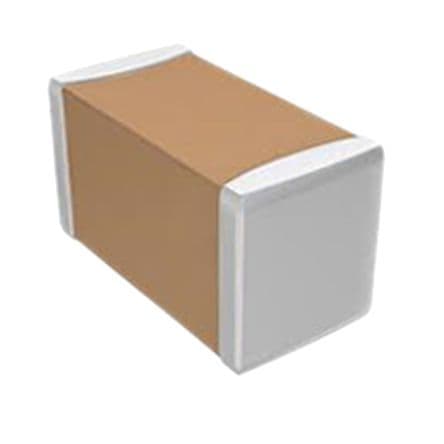

Product Images
