Multilayer Ceramic Capacitor (MLCC) with 22µF capacitance and 10V voltage rating. Features X5R dielectric material and 20% tolerance. Surface mountable in a 1210 (3225) case code, measuring 3.2mm in length, 2.5mm in depth, and 2.3mm in height. Operates from -55°C to 85°C and is RoHS compliant. Packaged on tape and reel.
Package1210
Voltage10V
Capacitance22uF
Voltage Rating10V
Quick Jump:
Technical Specifications
TDK C3225X5R1A226M230AA technical specifications.
General
| Capacitance | 22uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | X5R |
| Dielectric Material | Ceramic |
| Height | 2.3mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
Compliance
| RoHS | Compliant |
Datasheet
TDK C3225X5R1A226M230AA Datasheet
Download the complete datasheet for TDK C3225X5R1A226M230AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

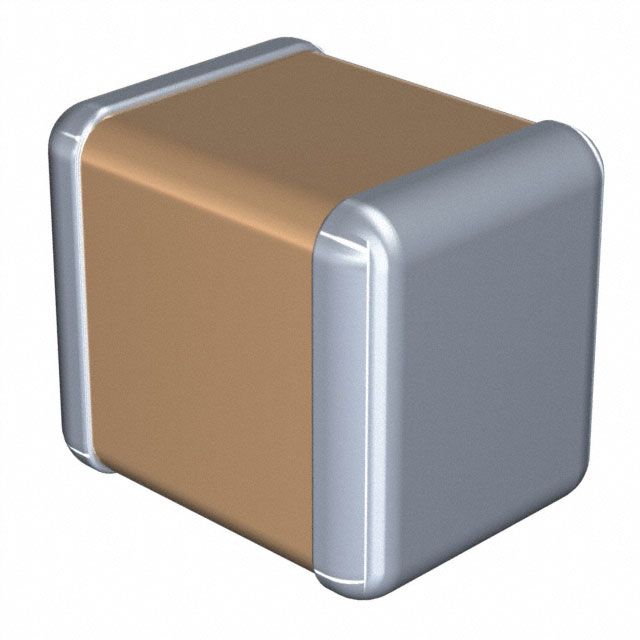

Product Images
