10uF, 25V surface mount multilayer ceramic capacitor with X7R dielectric. Features a 1210 imperial case code (3225 metric) and 10% tolerance. Operates from -55°C to 125°C, with a temperature coefficient of 15%. RoHS compliant, lead-free, and supplied in tape and reel packaging.
Package1210
Voltage25V
Capacitance10uF
Voltage Rating25V
Quick Jump:
Technical Specifications
TDK C3225X7R1E106K250AC technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Height | 2.5mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Weight | 0.000564oz |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK C3225X7R1E106K250AC Datasheet
Download the complete datasheet for TDK C3225X7R1E106K250AC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

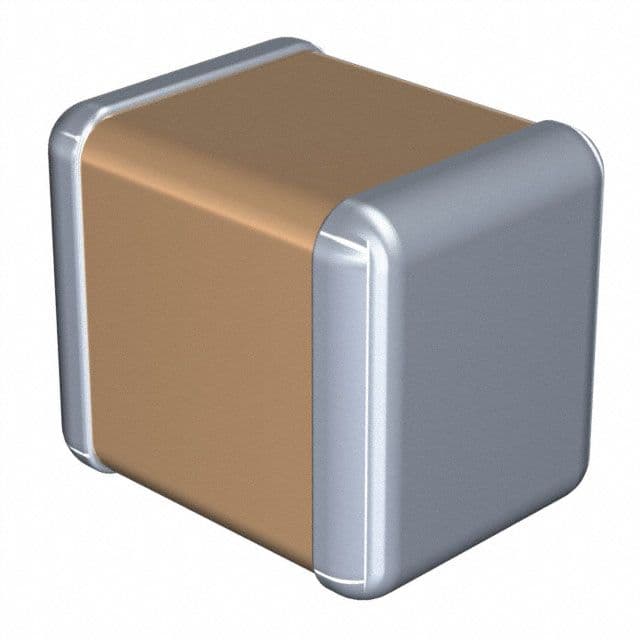

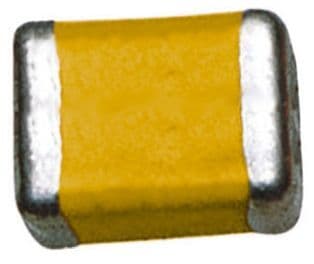

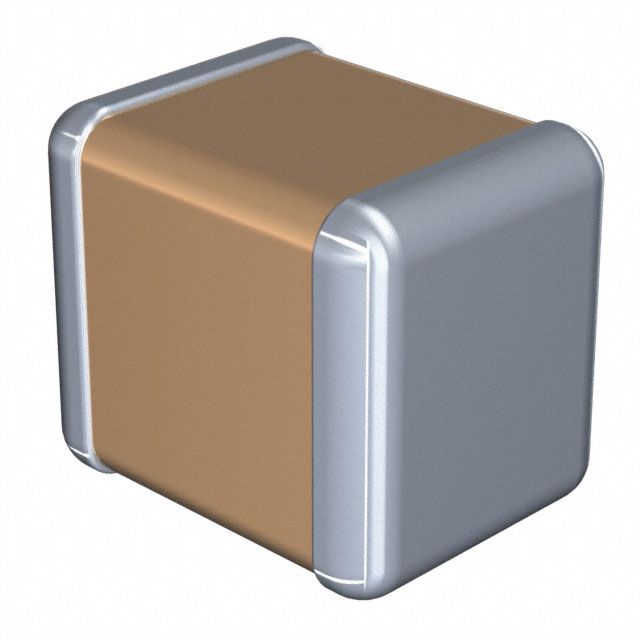

Product Images
