Multilayer Ceramic Capacitor (MLCC) with 6.8µF capacitance and 50V DC rating. Features X7R dielectric for stable performance across a -55°C to 125°C operating temperature range, with a 10% tolerance. Surface mountable in an 1812 (4532) case code, this lead-free component offers low ESR and is supplied on tape and reel.
Package1812
Voltage50V
Capacitance6.8uF
Voltage Rating50V
Quick Jump:
Technical Specifications
TDK C4532X7R1H685K250KB technical specifications.
General
| Capacitance | 6.8uF |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Construction | Flat |
| Depth | 3.2mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Height | 2.5mm |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.000952oz |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK C4532X7R1H685K250KB Datasheet
Download the complete datasheet for TDK C4532X7R1H685K250KB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

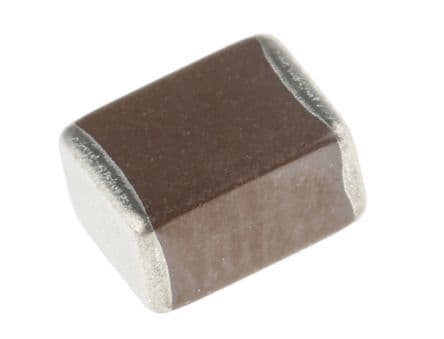

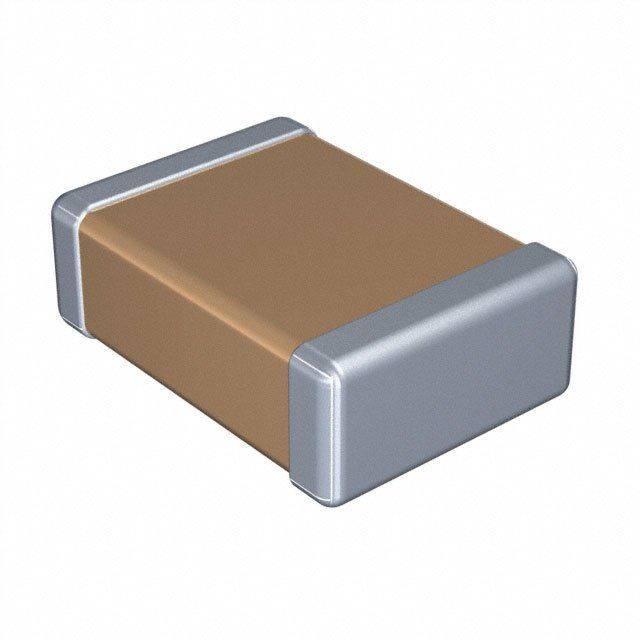

Product Images
