Multilayer Ceramic Capacitor (MLCC) with 100nF capacitance and 630V DC rated voltage. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range. Surface mountable in a 2220 imperial / 5750 metric case code, measuring 5.7mm length, 5mm width, and 2.8mm height. Offered with 5% tolerance and packaged on tape and reel.
Package2220
Capacitance100nF
Voltage Rating630V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK C5750C0G2J104J280KC technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 2220 |
| Case Code (Metric) | 5750 |
| Package/Case | 2220 |
| Dielectric | C0G |
| Height | 2.8mm |
| Length | 5.7mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 630V |
| DC Rated Voltage | 630V |
| Weight | 0.016932oz |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK C5750C0G2J104J280KC Datasheet
Download the complete datasheet for TDK C5750C0G2J104J280KC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

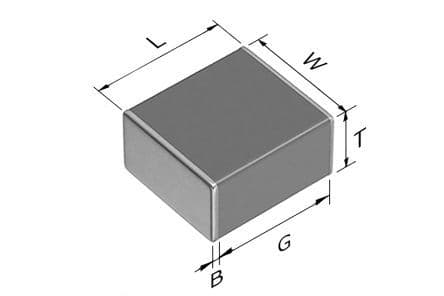

Product Images
