Multilayer Ceramic Capacitor (MLCC) with 68µF capacitance and 10V DC rated voltage. Features X5R dielectric material, 20% tolerance, and a 2220 (5750 metric) surface mount package. Operates from -55°C to 85°C with low ESR and lead-free termination. Packaged in tape and reel for automated assembly.
Package2220
Voltage10V
Capacitance68uF
Voltage Rating10V
Quick Jump:
Technical Specifications
TDK C5750X5R1A686M230KA technical specifications.
General
| Capacitance | 68uF |
| Case Code (Imperial) | 2220 |
| Case Code (Metric) | 5750 |
| Package/Case | 2220 |
| Construction | Flat |
| Depth | 5mm |
| Dielectric | X5R |
| Dielectric Material | Ceramic |
| Height | 2.3mm |
| Lead Free | Lead Free |
| Length | 5.7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.098inch |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Weight | 0.016932oz |
| Width | 0.197inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK C5750X5R1A686M230KA Datasheet
Download the complete datasheet for TDK C5750X5R1A686M230KA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

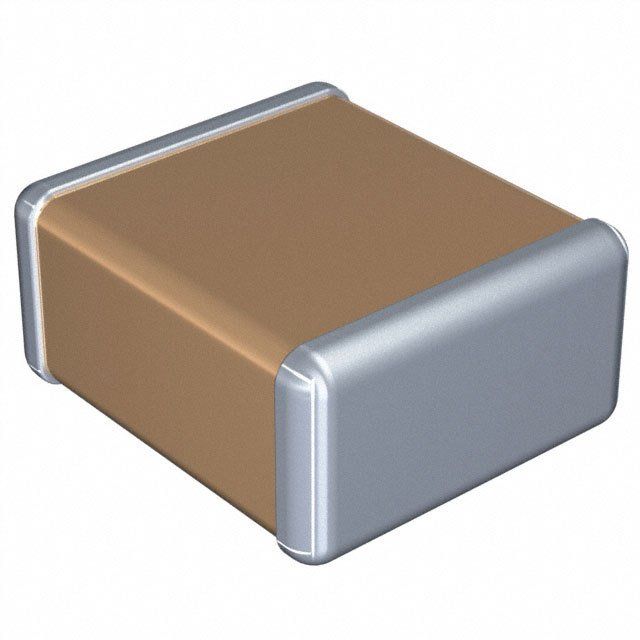

Product Images
