Isolated, regulated DC-DC converter module, 10W output power, 3.3V output voltage, and 2.5A maximum output current. Features a wide input voltage range of 4.5V to 9V with a nominal input of 5V. Operates across a temperature range of -40°C to 85°C and offers 500V isolation. Surface mountable in an SMD/SMT package.
PackageSMD/SMT
MountingSurface Mount
Power10W
Quick Jump:
Technical Specifications
TDK CC10-0503SR-E technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
2.5A
Depth
22.61mm
Height
0.35inch
Isolation
Isolated
Isolation Voltage
500V
Lead Free
Lead Free
Length
1.4inch
Max Input Voltage
9V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
2.5A
Max Power Dissipation
10W
Mount
Surface Mount
Nominal Input Voltage
5V
Number of Outputs
1
Output Current
2.5A
Output Power
10W
Output Voltage
3.3V
Package Quantity
30
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
CC-E
Voltage - Output 1
3.3V
Weight
10g
Width
0.89inch
Compliance
RoHS
Compliant
Datasheet
TDK CC10-0503SR-E Datasheet
Download the complete datasheet for TDK CC10-0503SR-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

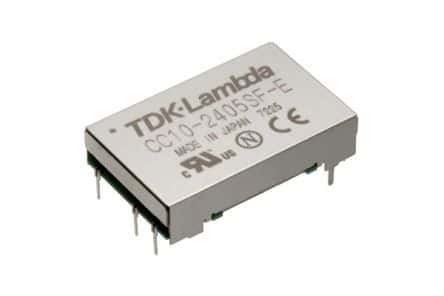

Product Images
