Isolated DC-DC regulated power supply module, 10W hybrid, SMD/SMT package. Features dual 12V outputs, each delivering 450mA. Operates with a 18V to 36V DC input range, nominal 24V, and provides 500V isolation. Extended operating temperature range from -40°C to 85°C. Surface mountable with dimensions of 35.56mm length, 22.6mm width, and 0.35 inches height.
PackageSMD/SMT
MountingSurface Mount
Power10W
Quick Jump:
Technical Specifications
TDK CC10-2412DR-E technical specifications.
General
| Package/Case | SMD/SMT |
| Current - Output 1 | 450mA |
| Current - Output 2 | 450mA |
| Depth | 22.61mm |
| Height | 0.35inch |
| Isolation | Isolated |
| Isolation Voltage | 500V |
| Lead Free | Lead Free |
| Length | 35.56mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 450mA |
| Max Output Power | 10W |
| Max Power Dissipation | 10W |
| Mount | Surface Mount |
| Nominal Input Voltage | 24V |
| Number of Outputs | 2 |
| Output Current | 450mA |
| Output Power | 10W |
| Output Voltage | 12V |
| Package Quantity | 30 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CC-E |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Weight | 10g |
| Width | 22.6mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK CC10-2412DR-E Datasheet
Download the complete datasheet for TDK CC10-2412DR-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

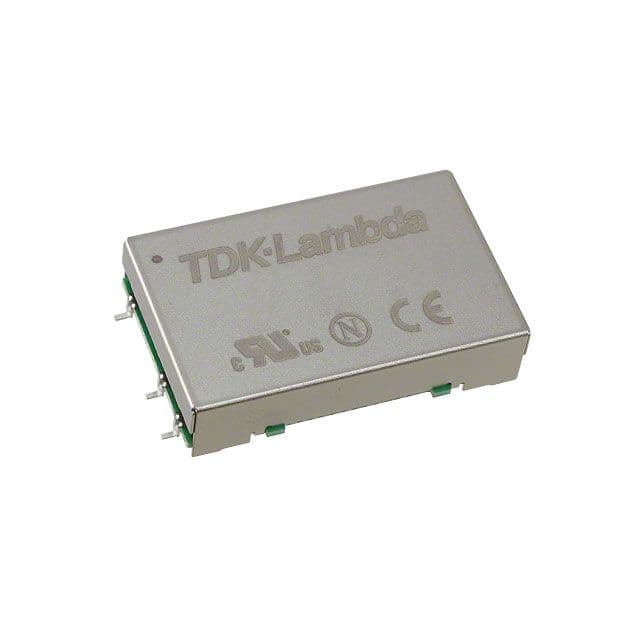

Product Images
