Isolated DC-DC converter module, 10W output power, 1A maximum output current, and 12V nominal output voltage. Features a 18V to 36V DC input range and a single output. Encased in a PDIP package for through-hole mounting, this regulated power supply operates from -40°C to 85°C with 500V isolation.
PackagePDIP
MountingThrough Hole
Power10W
Quick Jump:
Technical Specifications
TDK CC10-2412SF-E technical specifications.
General
| Package/Case | PDIP |
| Current - Output 1 | 1A |
| Depth | 35.56mm |
| Height | 8.5mm |
| Isolation | Isolated |
| Isolation Voltage | 500V |
| Lead Free | Lead Free |
| Length | 35.56mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Power | 10W |
| Max Power Dissipation | 10W |
| Mount | Through Hole |
| Nominal Input Voltage | 24V |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Output Current | 1A |
| Output Power | 10W |
| Output Voltage | 12V |
| Package Quantity | 30 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | CC-E |
| Voltage - Output 1 | 12V |
| Weight | 10g |
| Width | 22.6mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK CC10-2412SF-E Datasheet
Download the complete datasheet for TDK CC10-2412SF-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

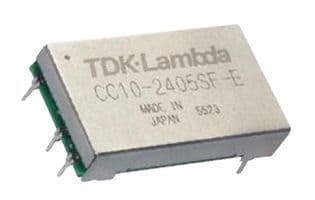

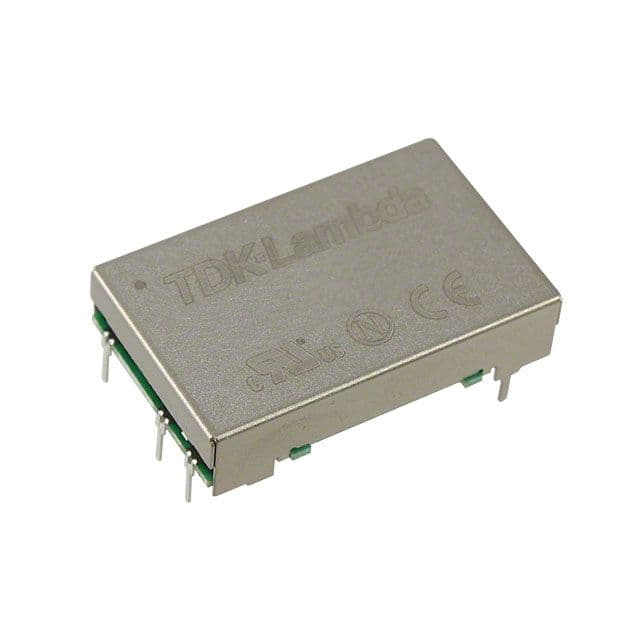

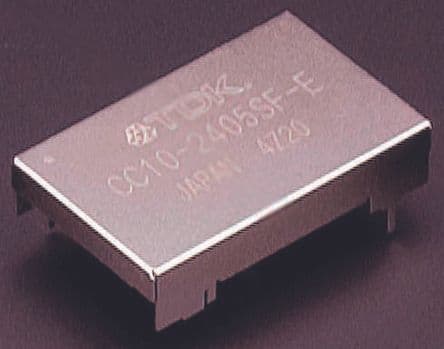

Product Images
