Isolated DC-DC converter module, 6W output power, featuring a single 5V output at 1.2A. Operates with an input voltage range of 18V to 36V DC, nominal 24V DC. This hybrid power supply module offers 500V isolation and is housed in a PDIP package for through-hole PCB mounting. It boasts a wide operating temperature range of -40°C to 85°C and is RoHS compliant.
PackagePDIP
MountingThrough Hole, PCB
Power6W
Quick Jump:
Technical Specifications
TDK CC6-2405SF-E technical specifications.
General
| Package/Case | PDIP |
| Current - Output 1 | 1.2A |
| Depth | 21.11mm |
| Height | 0.34inch |
| Isolation | Isolated |
| Isolation Voltage | 500V |
| Lead Free | Lead Free |
| Length | 22.86mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.2A |
| Max Output Power | 6W |
| Max Power Dissipation | 6W |
| Mount | Through Hole, PCB |
| Nominal Input Voltage | 24V |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Output Current | 1.2A |
| Output Power | 6W |
| Output Voltage | 5V |
| Package Quantity | 40 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | CC-E |
| Voltage - Output 1 | 5V |
| Weight | 5.8g |
| Width | 0.83inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK CC6-2405SF-E Datasheet
Download the complete datasheet for TDK CC6-2405SF-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

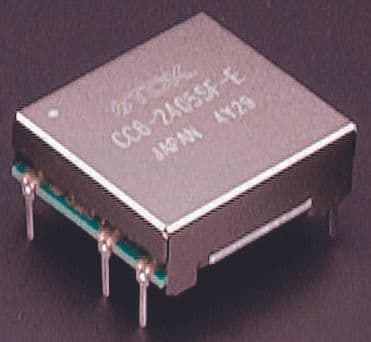

Product Images
