Surface mount multilayer ceramic capacitor (MLCC) with 10pF capacitance and 50V DC rated voltage. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range. Housed in a compact 0402 (1005 metric) SMD package with a 0.5mm height and 1mm length. AEC-Q200 qualified for automotive applications, this lead-free component is supplied on tape and reel.
Package0402
Capacitance10pF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA2B2C0G1H100D050BA technical specifications.
General
| Capacitance | 10pF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Depth | 0.5mm |
| Dielectric | C0G |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Length | 1mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Thickness | 0.022inch |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 2.3E-05oz |
| Width | 0.02inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA2B2C0G1H100D050BA Datasheet
Download the complete datasheet for TDK CGA2B2C0G1H100D050BA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

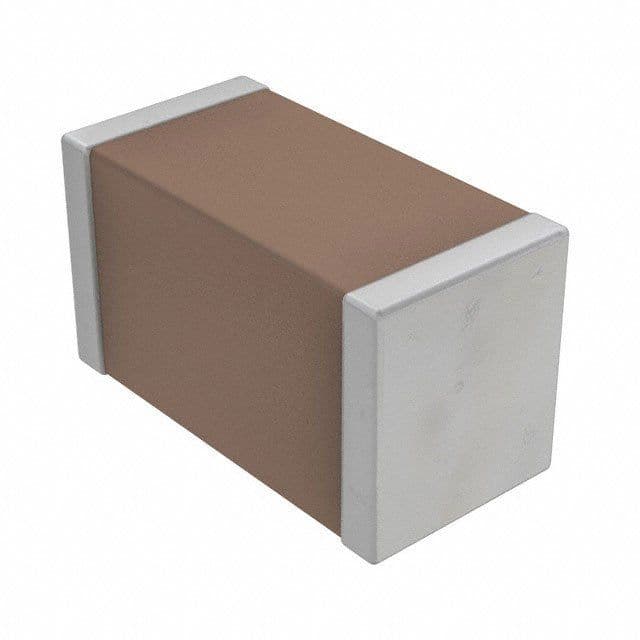

Product Images
