This 50V ceramic capacitor has a capacitance of 150pF with a 5% tolerance. It is packaged in a 0402 case, suitable for surface mount applications. The operating temperature range is -55°C to 125°C. The capacitor is compliant with RoHS and AEC-Q200 standards.
Package0402
Capacitance150pF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the TDK CGA2B2C0G1H151J050BA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
TDK CGA2B2C0G1H151J050BA technical specifications.
General
| Capacitance | 150pF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Depth | 0.5mm |
| Dielectric | C0G |
| Height | 0.5mm |
| Length | 1mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 2.3E-05oz |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA2B2C0G1H151J050BA Datasheet
Download the complete datasheet for TDK CGA2B2C0G1H151J050BA to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

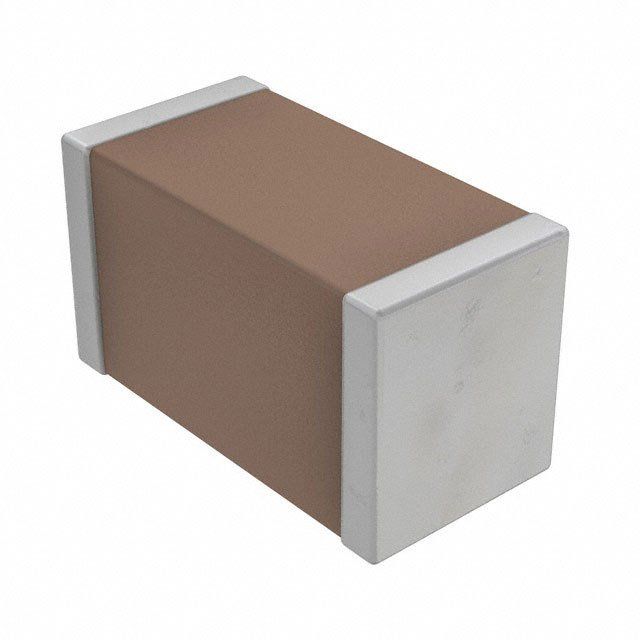

Product Images
