0.1µF, 50V X7R multilayer ceramic capacitor in a 0402 (1005 metric) surface mount package. Features 10% capacitance tolerance, operating temperature range of -55°C to 125°C, and AEC-Q200 qualification. This lead-free, RoHS compliant component is supplied on tape and reel.
Package0402
Capacitance100nF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA2B3X7R1H104K050BD technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Dielectric | X7R |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Length | 0.039inch |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Thickness | 0.02inch |
| Tolerance | 10% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 2.3E-05oz |
| Width | 0.02inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA2B3X7R1H104K050BD Datasheet
Download the complete datasheet for TDK CGA2B3X7R1H104K050BD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

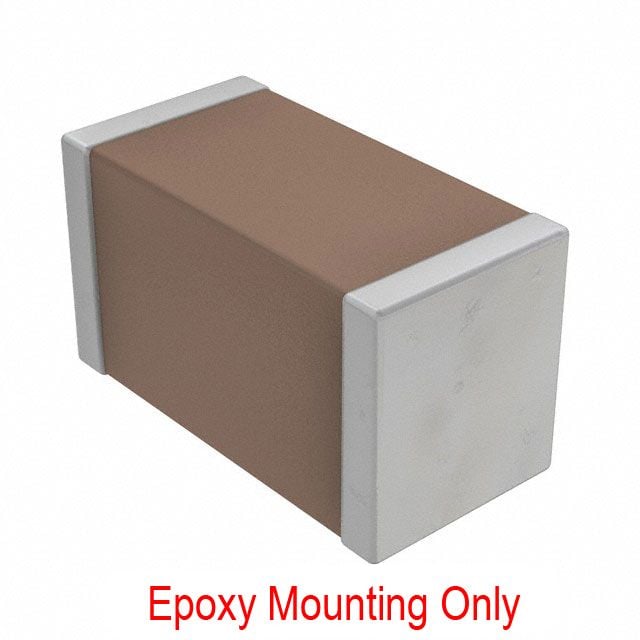

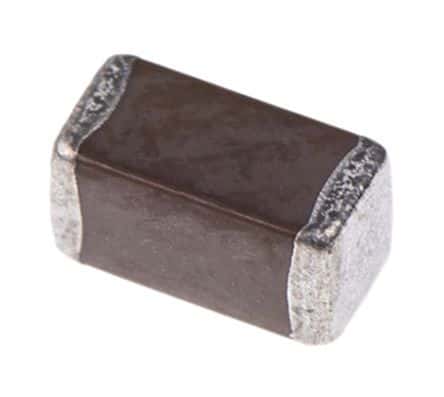

Product Images
