Multilayer Ceramic Capacitor (MLCC) with 15nF capacitance and 100V DC rating. Features X8R dielectric, 10% tolerance, and a 0603 (1608 metric) SMD package. Designed for high-temperature applications, operating from -55°C to 150°C, and meets AEC-Q200 automotive standards. Packaged in tape and reel for surface mount assembly.
Package0603
Capacitance15nF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA3E2X8R2A153K080AA technical specifications.
General
Capacitance
15nF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Flat
Depth
0.8mm
Dielectric
X8R
Features
High Temperature
Height
0.8mm
Length
1.6mm
Material
Ceramic
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Ratings
AEC-Q200
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CGA
Termination
SMD/SMT
Thickness
0.035inch
Tolerance
10%
Voltage Rating
100V
DC Rated Voltage
100V
Weight
7.1E-05oz
Width
0.031inch
Compliance
RoHS
Compliant
Datasheet
TDK CGA3E2X8R2A153K080AA Datasheet
Download the complete datasheet for TDK CGA3E2X8R2A153K080AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

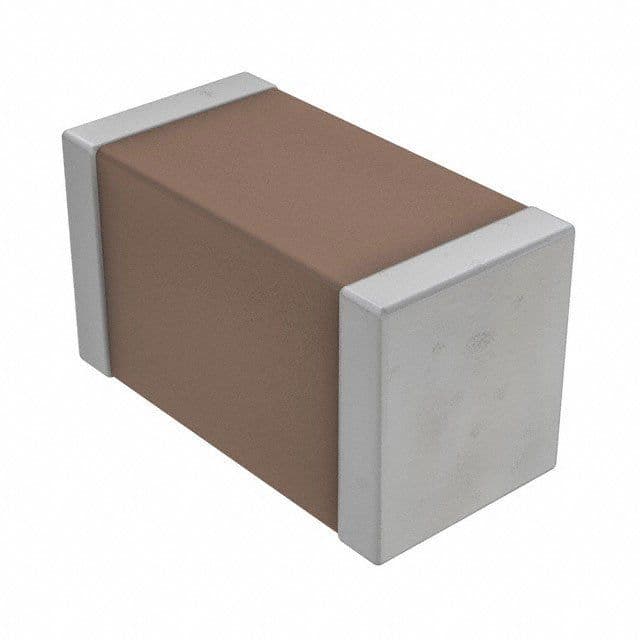

Product Images
