Technical Specifications
TDK CGA5L1X5R1C106M160AC technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Dielectric | X5R |
| Height | 1.6mm |
| Length | 0.126inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | CGA |
| Thickness | 0.071inch |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Weight | 0.000571oz |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA5L1X5R1C106M160AC Datasheet
Download the complete datasheet for TDK CGA5L1X5R1C106M160AC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

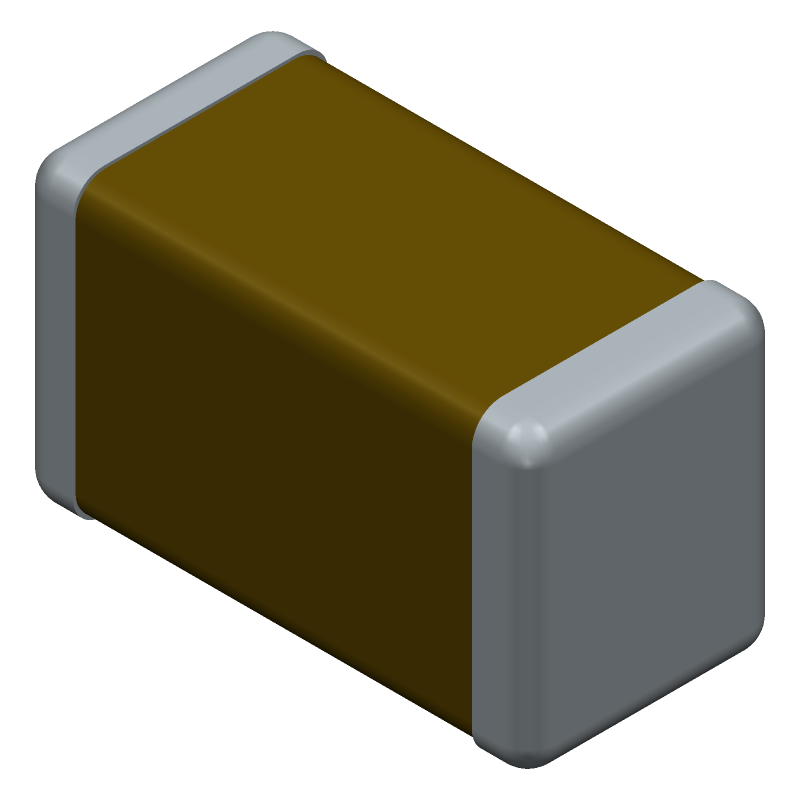

Product Images
