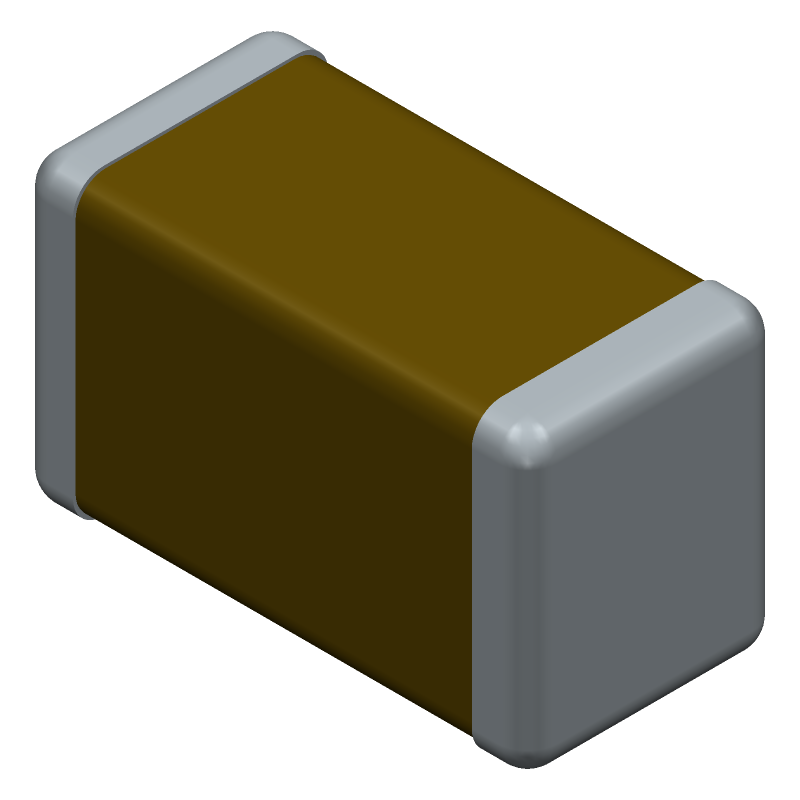

Multilayer Ceramic Capacitor (MLCC) with 470nF capacitance and 50V DC rating. Features X8R dielectric for high-temperature operation up to 150°C. Surface mountable in a 1206 (3216 metric) case code, with 10% tolerance. AEC-Q200 qualified and RoHS compliant, supplied in tape and reel packaging.
Package1206
Capacitance470nF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA5L2X8R1H474K160AA technical specifications.
General
| Capacitance | 470nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Depth | 1.6mm |
| Dielectric | X8R |
| Features | High Temperature |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.000571oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA5L2X8R1H474K160AA Datasheet
Download the complete datasheet for TDK CGA5L2X8R1H474K160AA to view detailed technical specifications.
