Technical Specifications
TDK CGA8N4X7R2J104K230KA technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Depth | 3.2mm |
| Dielectric | X7R |
| Height | 2.3mm |
| Length | 4.5mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 630V |
| DC Rated Voltage | 630V |
| Weight | 0.000952oz |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA8N4X7R2J104K230KA Datasheet
Download the complete datasheet for TDK CGA8N4X7R2J104K230KA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

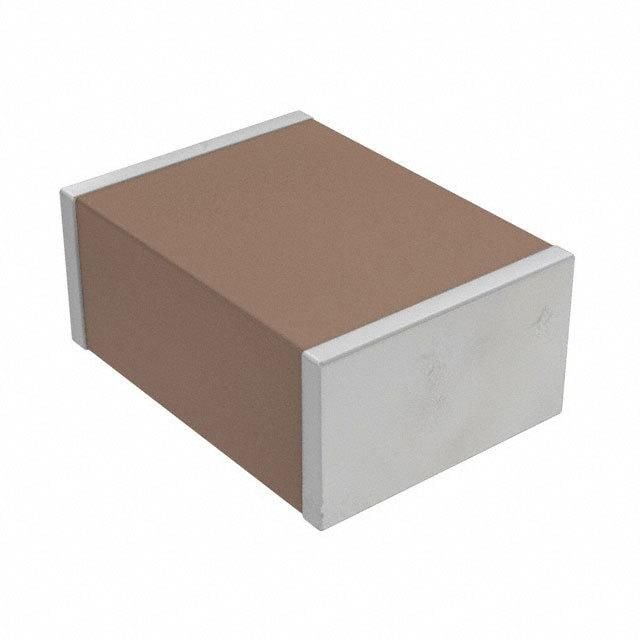

Product Images
