Multilayer Ceramic Capacitor (MLCC) with 47µF capacitance and 16V DC rating. Features X7R dielectric, 20% tolerance, and a 2220 (5750 metric) surface mount package. Operates from -55°C to 125°C, offering low ESR and AEC-Q200 compliance for automotive applications. Packaged in tape and reel.
Package2220
Capacitance47uF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGA9N3X7R1C476M230KB technical specifications.
General
| Capacitance | 47uF |
| Case Code (Imperial) | 2220 |
| Case Code (Metric) | 5750 |
| Package/Case | 2220 |
| Depth | 5mm |
| Dielectric | X7R |
| Height | 2.3mm |
| Lead Free | Lead Free |
| Length | 5.7mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CGA |
| Termination | SMD/SMT |
| Thickness | 0.091inch |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Weight | 0.016932oz |
| Width | 0.197inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGA9N3X7R1C476M230KB Datasheet
Download the complete datasheet for TDK CGA9N3X7R1C476M230KB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

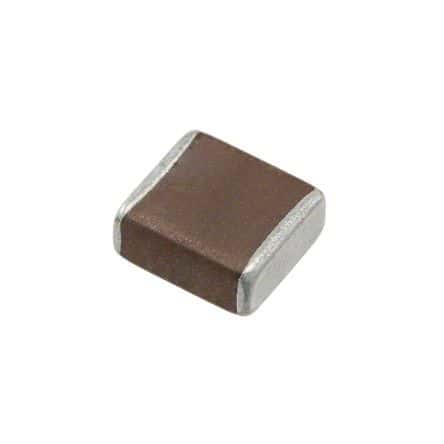

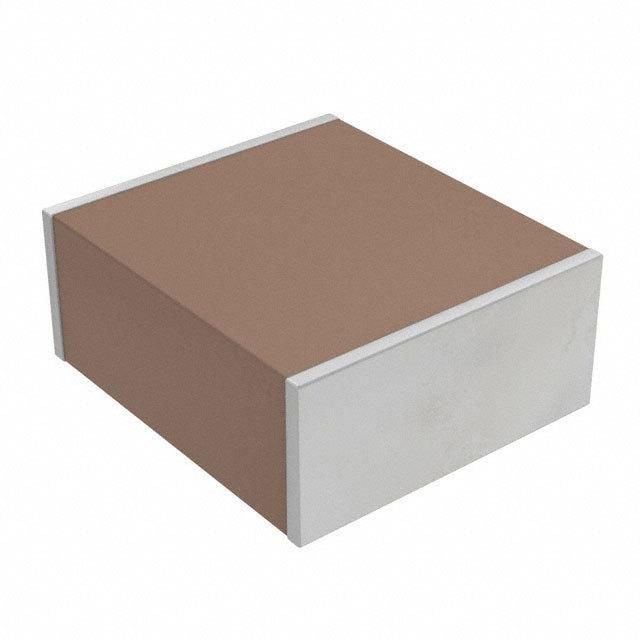

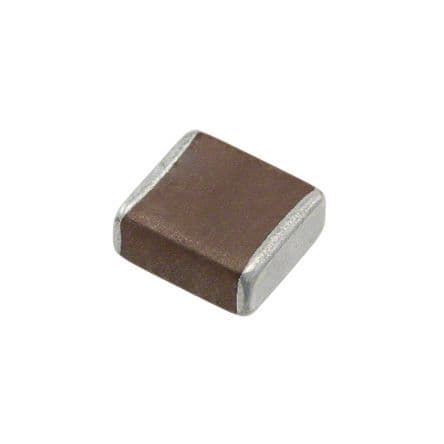

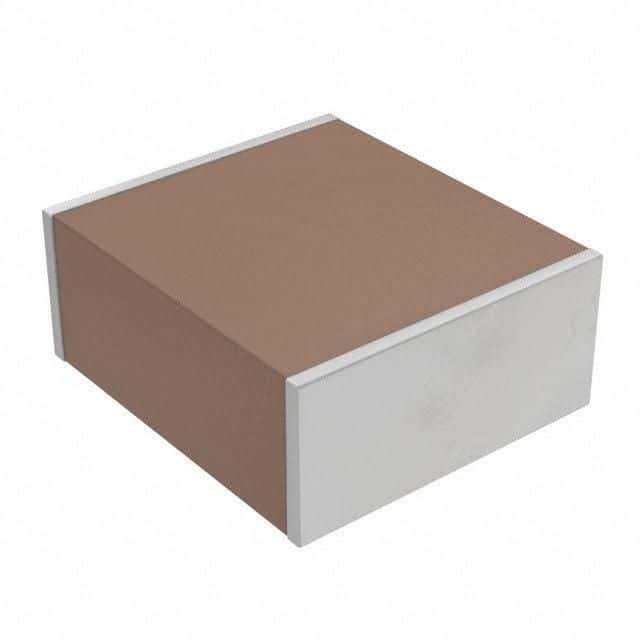

Product Images
