This is a 1uF ceramic capacitor with a voltage rating of 6.3V and a tolerance of 20%. It has a maximum operating temperature of 85°C and a minimum operating temperature of -55°C. The capacitor is packaged in a 0402 case and is suitable for surface mount applications. It is RoHS compliant and available in quantities of 10,000.
Package0402
Capacitance1uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK CGB2A3X5R0J105M033BB technical specifications.
General
| Capacitance | 1uF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Dielectric | X5R |
| Height | 0.33mm |
| Length | 1mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CGB |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK CGB2A3X5R0J105M033BB Datasheet
Download the complete datasheet for TDK CGB2A3X5R0J105M033BB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

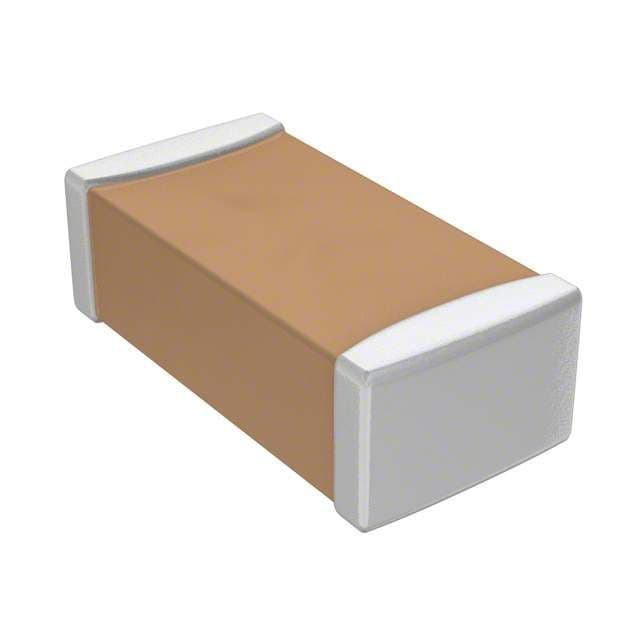

Product Images
