Surface mount, shielded wirewound power inductor with 4.7µH inductance and 30% tolerance. Features a ferrite core, 15.2mΩ DC resistance, and a 5.3A RMS current rating. Designed for automotive applications with AEC-Q200 qualification, operating from -40°C to 150°C. Dimensions are 12.5mm length, 12.1mm width, and 5.5mm height.
PackageNonstandard
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
TDK CLF12555T-4R7N-D technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
15.2mR
Height
5.5mm
Inductance
4.7uH
Inductance Tolerance
30%
Length
12.5mm
Max DC Current
9.6A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
500
Packaging
Cut Tape
Ratings
AEC-Q200
Reach SVHC Compliant
No
RMS Current (Irms)
5.3A
RoHS Compliant
Yes
Saturation Current
9.6A
Series
CLF-D
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Width
12.1mm
Compliance
RoHS
Compliant
Datasheet
TDK CLF12555T-4R7N-D Datasheet
Download the complete datasheet for TDK CLF12555T-4R7N-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

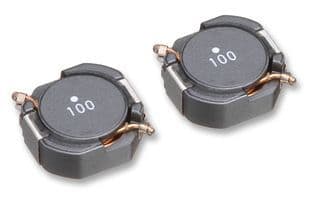

Product Images
