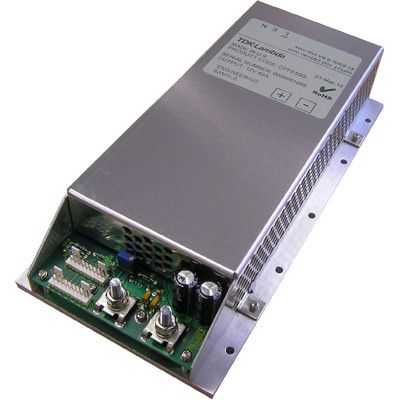

Enclosed AC/DC power supply delivering 500W maximum output power. Features a nominal output voltage of 24V with a maximum output current of 18A. Operates across a wide input voltage range of 90V to 265V AC, boasting 85% efficiency. Designed for chassis, panel, or screw mounting, with an isolation voltage of 4.242kV. Suitable for operation in temperatures from -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK CPFE500F-24-NLC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK CPFE500F-24-NLC technical specifications.
| Current - Output 1 | 18A |
| Efficiency | 85% |
| Height | 54.5mm |
| Isolation Voltage | 4.242kV |
| Length | 3.15inch |
| Max Input Voltage | 265V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 18A |
| Max Output Power | 504W |
| Max Power Dissipation | 500W |
| Mount | Chassis Mount, Panel, Screw |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 18A |
| Output Power | 432W |
| Output Voltage | 24V |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CPFE500F (500W) |
| Voltage - Output 1 | 24V |
| Weight | 5lb |
| Width | 11.81inch |
| RoHS | Compliant |
