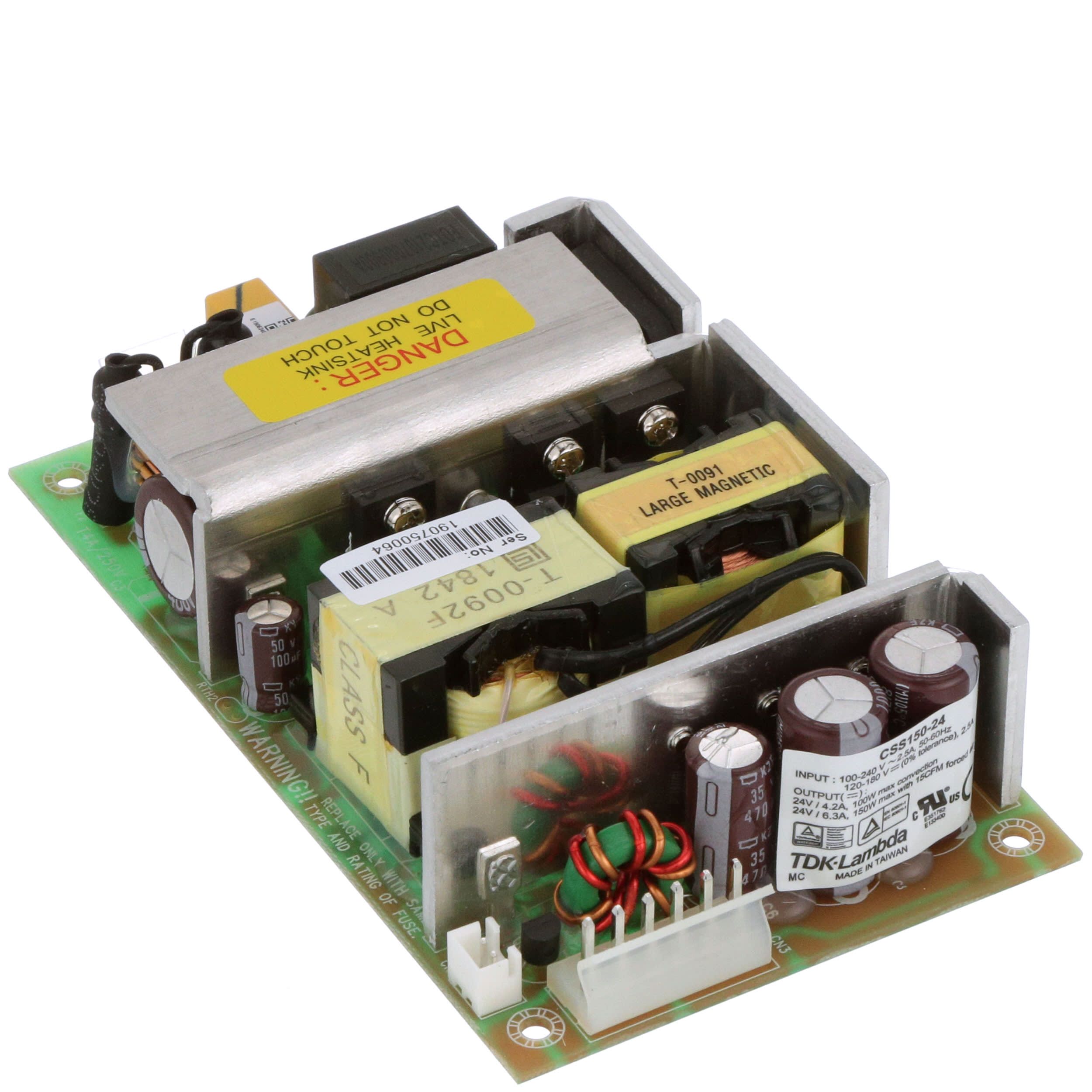

The CSS150-24 DC/DC converter from TDK offers 100W output power with a maximum output current of 4.2A and an output voltage of 24V. It operates within a temperature range of 0°C to 70°C and features a high efficiency of 89%. The module is designed for chassis mount, panel, or screw mounting and is compliant with RoHS regulations. Its compact size measures 3inch in width, 5inch in length, and 1.3inch in height, with a weight of 12oz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK CSS150-24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK CSS150-24 technical specifications.
| Current - Output 1 | 6.3A |
| Depth | 76.2mm |
| Efficiency | 89% |
| Height | 1.3inch |
| Isolation Voltage | 4kV |
| Lead Free | Lead Free |
| Length | 5inch |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 4.2A |
| Max Power Dissipation | 100W |
| Mount | Chassis Mount, Panel, Screw |
| Number of Outputs | 1 |
| Output Current | 4.2A |
| Output Power | 100W |
| Output Voltage | 24V |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | CSS150 (150W) |
| Voltage - Output 1 | 24V |
| Weight | 12oz |
| Width | 3inch |
| RoHS | Compliant |
