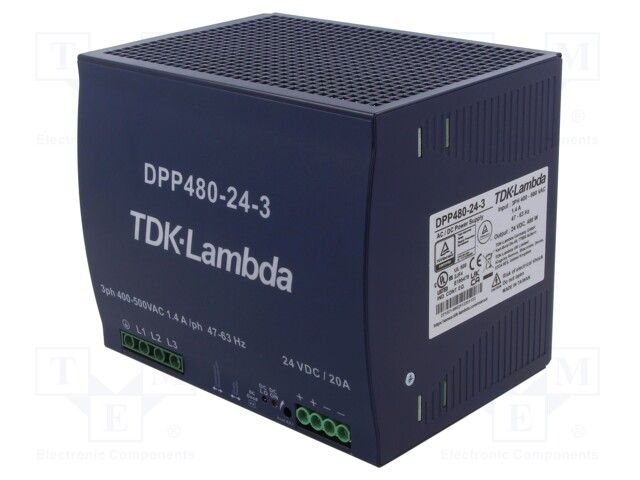

480W AC/DC power supply with a single 24V output, delivering up to 20A. Features 90% efficiency and 3kV isolation voltage, operating from 340-575V AC input at 63Hz. This DIN rail mountable unit offers a wide operating temperature range of -40°C to 71°C and is RoHS compliant.
Frequency63Hz
Voltage Rating24V
MountingDIN Rail
Power480W
Quick Jump:
Technical Specifications
TDK DPP480-24-3 technical specifications.
General
| Approvals | CE |
| Current - Output 1 | 20A |
| Efficiency | 90% |
| Frequency | 63Hz |
| Height | 4.88inch |
| Isolation Voltage | 3kV |
| Length | 4.68inch |
| Max Input Voltage (AC) | 575V |
| Min Input Voltage (AC) | 340V |
| Max Input Voltage | 575V |
| Min Input Voltage | 340V |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20A |
| Max Output Power | 480W |
| Max Power Dissipation | 480W |
| Mount | DIN Rail |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Power | 480W |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | DPP |
| Voltage - Output 1 | 24V |
| Voltage Rating | 24V |
| Weight | 3.792lb |
| Width | 5.91inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK DPP480-24-3 Datasheet
Download the complete datasheet for TDK DPP480-24-3 to view detailed technical specifications.
