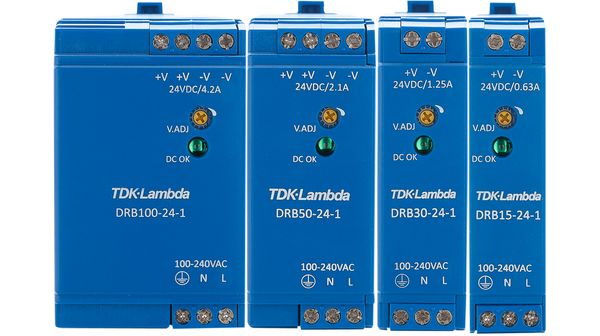

Enclosed AC/DC power supply featuring 24V nominal output voltage and 1.25A maximum output current, delivering 30W of power. This DIN rail mountable unit operates with an efficiency of 90% and offers an isolation voltage of 3kV. It accepts an AC input range of 85V to 264V and functions across an operating temperature range of -20°C to 70°C. Dimensions are 90mm (length) x 21mm (width) x 75mm (height).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK DRB-30-24-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current - Output 1 | 1.25A |
| Depth | 95mm |
| Efficiency | 90% |
| Height | 75mm |
| Isolation Voltage | 3kV |
| Length | 90mm |
| Max Current Rating | 550mA |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 1.25A |
| Max Output Power | 30W |
| Max Output Voltage | 28V |
| Min Output Voltage | 24V |
| Max Power Dissipation | 30W |
| Mount | DIN Rail |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 1.25A |
| Output Power | 30W |
| Output Voltage | 24V |
| Package Quantity | 20 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | DRB (15-100W) |
| Voltage - Output 1 | 24V |
| Weight | 3.351026oz |
| Width | 21mm |
| RoHS | Compliant |
