Board mount DC/DC converter, 100.8W output power, delivering a regulated 24V at 4.2A. Features a wide AC input range from 90V to 264V, with 3kV isolation voltage. Operates efficiently at 85% and is designed for board mounting with dimensions of 89.9mm length, 55.6mm depth, and 53.34mm height. Suitable for operating temperatures between -25°C and 71°C.
Package100
MountingDIN Rail, Panel
Power100.8W
Quick Jump:
Technical Specifications
TDK DSP100-24 technical specifications.
General
Package/Case
100
Current - Output 1
4.2A
Depth
55.6mm
Efficiency
85%
Height
2.19inch
Isolation Voltage
3kV
Length
89.9mm
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
90V
Max Input Voltage
264V
Min Input Voltage
90V
Max Operating Temperature
71°C
Min Operating Temperature
-25°C
Max Output Current
4.2A
Max Output Power
100.8W
Max Power Dissipation
100W
Mount
DIN Rail, Panel
Nominal Output Voltage
24V
Number of Outputs
1
Output Current
4.2A
Output Power
100.8W
Output Voltage
24V
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DSP (7.5-100W)
Voltage - Output 1
24V
Weight
11.287668oz
Width
3.58inch
Compliance
RoHS
Compliant
Datasheet
TDK DSP100-24 Datasheet
Download the complete datasheet for TDK DSP100-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

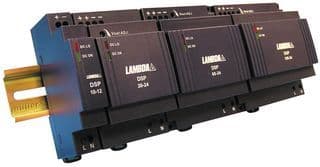

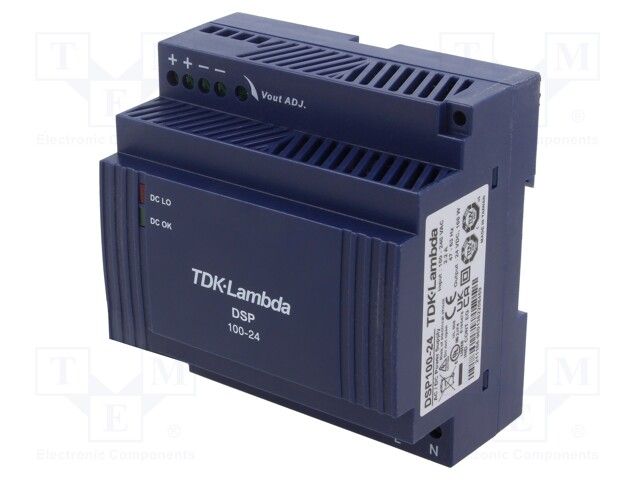

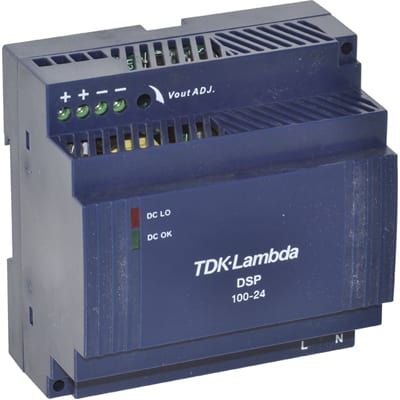

Product Images
