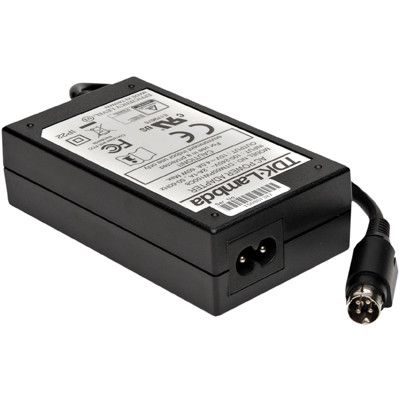

65W AC/DC desktop power supply, outputting 48V at 1.35A. Features 90-264V AC input range and 87% efficiency. Operates between 0°C and 50°C with a 4-pin Power DIN output connector. Includes a 41.34-inch cord and CE approval.
Quick Jump:
Technical Specifications
TDK DTM65PW480C technical specifications.
General
Approvals
CE
Cord Length
41.34inch
Current - Output 1
1.35A
Efficiency
87%
Height
1.57inch
Length
5.2inch
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
90V
Max Input Voltage
264V
Min Input Voltage
90V
Max Operating Temperature
50°C
Min Operating Temperature
0°C
Max Output Current
1.35A
Max Output Power
65W
Max Power Dissipation
65W
Number of Outputs
1
Output Connector
Power DIN, 4 Pin
Output Voltage
48V
Overall Depth
40mm
Package Quantity
1
Reach SVHC Compliant
No
Series
DTM65-C
Voltage - Output 1
48V
Weight
1lb
Width
2.71inch
Compliance
RoHS
Compliant
Datasheet
TDK DTM65PW480C Datasheet
Download the complete datasheet for TDK DTM65PW480C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
