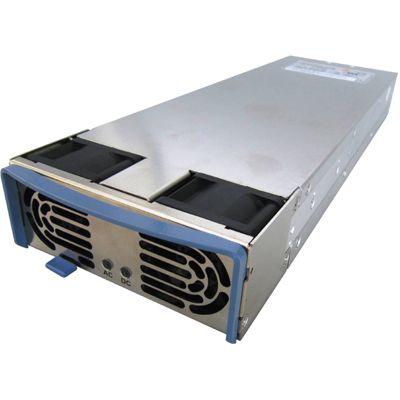

24V, 104A AC/DC power supply delivering 2496W output power. Features 92% efficiency, 3kV isolation voltage, and a wide input voltage range of 85-265V AC. Operating temperature range is -10°C to 70°C. This single-output, rack-mount power supply is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK HFE2500-24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK HFE2500-24 technical specifications.
| Approvals | CE |
| Current - Output 1 | 104A |
| Efficiency | 92% |
| Height | 1.61inch |
| Isolation Voltage | 3kV |
| Length | 12.8inch |
| Max Current Rating | 15A |
| Max Input Voltage (AC) | 265V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 104A |
| Max Output Power | 2.496kW |
| Max Power Dissipation | 2.5kW |
| Mount | Rack |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Power | 2.496kW |
| Output Voltage | 24V |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | HFE2500 |
| Voltage - Output 1 | 24V |
| Weight | 4.63lb |
| Width | 4.21inch |
| RoHS | Compliant |
