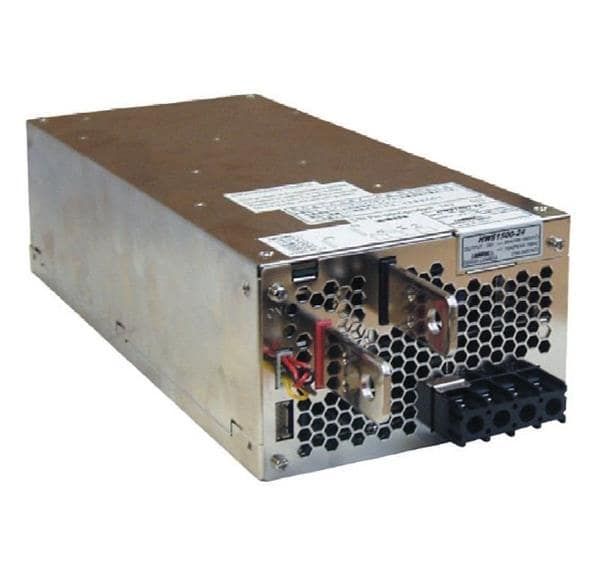

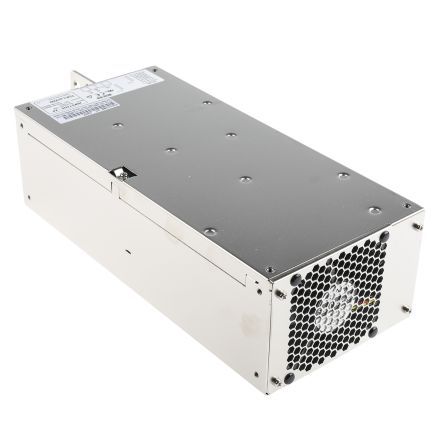

Enclosed AC-DC converter, 1.56kW max output power, 24V nominal output voltage, and 70A maximum output current. Features 88% efficiency, 3kV isolation voltage, and a wide input voltage range of 85-265V AC. Operates from -10°C to 70°C and offers chassis or panel mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK HWS150024 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK HWS150024 technical specifications.
| Approvals | CE |
| Current - Output 1 | 65A |
| Current Rating | 65A |
| Depth | 127mm |
| Efficiency | 88% |
| Height | 3.25inch |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Length | 11inch |
| Max Input Voltage (AC) | 265V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 70A |
| Max Output Power | 1.56kW |
| Max Output Voltage | 28.8V |
| Min Output Voltage | 19.2V |
| Max Power Dissipation | 1.5kW |
| Max Supply Voltage | 265V |
| Min Supply Voltage | 85V |
| Mount | Chassis Mount, Panel |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 70A |
| Output Power | 1.56kW |
| Output Voltage | 24V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | HWS1500 |
| Voltage - Output 1 | 24V |
| Weight | 1lb |
| Width | 5inch |
| RoHS | Compliant |
