336W AC/DC power supply with a single 24V output, delivering up to 14A. Features 85% efficiency and 3kV isolation voltage, operating from 85-265V AC input. Chassis and panel mountable, this power supply offers a wide operating temperature range of -10°C to 70°C. RoHS compliant and CE approved for reliable performance.
MountingChassis Mount, Panel
Power336W
Quick Jump:
Technical Specifications
TDK HWS300-24/ME technical specifications.
General
| Approvals | CE |
| Current - Output 1 | 14A |
| Depth | 60.96mm |
| Efficiency | 85% |
| Height | 3.23inch |
| Isolation Voltage | 3kV |
| Length | 6.5inch |
| Max Input Voltage (AC) | 265V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 14A |
| Max Output Power | 336W |
| Max Power Dissipation | 300W |
| Mount | Chassis Mount, Panel |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 14A |
| Output Power | 336W |
| Output Voltage | 24V |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | HWS |
| Voltage - Output 1 | 24V |
| Weight | 2.205lb |
| Width | 2.4inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK HWS300-24/ME Datasheet
Download the complete datasheet for TDK HWS300-24/ME to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

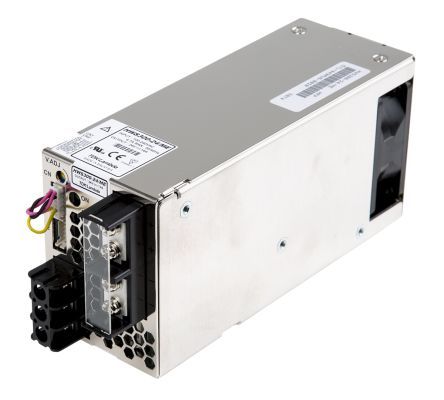

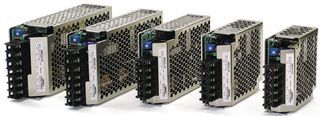

Product Images
