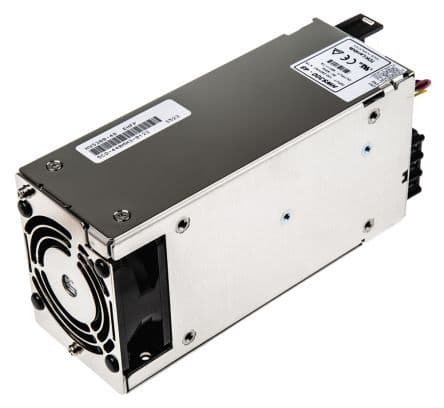

Single-output AC/DC power supply delivers 336W maximum output power with a nominal output voltage of 48V and a maximum output current of 7A. Features 85% efficiency and 3kV isolation voltage, operating across an input voltage range of 85V to 265V AC. Designed for chassis or panel mounting, this 300W power supply has a maximum operating temperature of 70°C and is lead-free compliant.
Current Rating7A
MountingChassis Mount, Panel
Power336W
Quick Jump:
Technical Specifications
TDK HWS300-48 technical specifications.
General
Approvals
CE
Current - Output 1
7A
Current Rating
7A
Depth
60.96mm
Efficiency
85%
Height
3.23inch
Isolation Voltage
3kV
Lead Free
Lead Free
Length
6.5inch
Max Input Voltage (AC)
265V
Min Input Voltage (AC)
85V
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Output Current
7A
Max Output Power
336W
Max Power Dissipation
300W
Mount
Chassis Mount, Panel
Nominal Output Voltage
48V
Number of Outputs
1
Output Current
7A
Output Power
336W
Output Voltage
48V
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Series
HWS
Voltage - Output 1
48V
Weight
2.094lb
Width
2.4inch
Compliance
RoHS
Compliant
Datasheet
TDK HWS300-48 Datasheet
Download the complete datasheet for TDK HWS300-48 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
