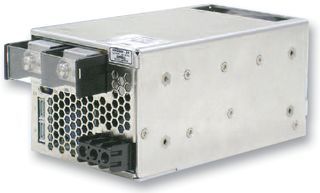

300W AC/DC power supply featuring a single 5V output with a maximum current of 60A. This chassis mount unit offers 82% efficiency and operates across an input voltage range of 85-265V AC. It provides 3kV isolation voltage and is designed for a wide operating temperature range of -10°C to 70°C.
Package300
Current Rating60A
MountingChassis Mount, Panel
Power300W
Quick Jump:
Technical Specifications
TDK HWS300-5 technical specifications.
General
Package/Case
300
Current - Output 1
60A
Current Rating
60A
Depth
60.96mm
Efficiency
82%
Height
1.69inch
Isolation Voltage
3kV
Lead Free
Lead Free
Length
165.1mm
Max Input Voltage (AC)
265V
Min Input Voltage (AC)
85V
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Output Current
60A
Max Output Power
300W
Max Power Dissipation
300W
Mount
Chassis Mount, Panel
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
60A
Output Power
300W
Output Voltage
5V
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Series
HWS (300W)
Voltage - Output 1
5V
Weight
1.058lb
Width
3.7inch
Compliance
RoHS
Compliant
Datasheet
TDK HWS300-5 Datasheet
Download the complete datasheet for TDK HWS300-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
