AC/DC power supply, single output, delivering 48V at 6.3A for a maximum output power of 302.4W. Features 87% efficiency, 3kV isolation voltage, and operates within an input voltage range of 85-265V AC. This chassis mount unit has dimensions of 6.5 inches (length) x 2.4 inches (width) x 3.23 inches (height) and a maximum operating temperature of 70°C. RoHS compliant.
MountingChassis Mount
Quick Jump:
Technical Specifications
TDK HWS300P-48 technical specifications.
General
| Approvals | CE |
| Current - Output 1 | 6.3A |
| Depth | 2.4inch |
| Efficiency | 87% |
| Height | 3.23inch |
| Isolation Voltage | 3kV |
| Length | 6.5inch |
| Max Input Voltage (AC) | 265V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 6.3A |
| Max Output Power | 302.4W |
| Max Power Dissipation | 300W |
| Mount | Chassis Mount |
| Nominal Output Voltage | 48V |
| Number of Outputs | 1 |
| Output Current | 6.3A |
| Output Voltage | 48V |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | HWS |
| Voltage - Output 1 | 48V |
| Weight | 2.094lb |
| Width | 2.4inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK HWS300P-48 Datasheet
Download the complete datasheet for TDK HWS300P-48 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

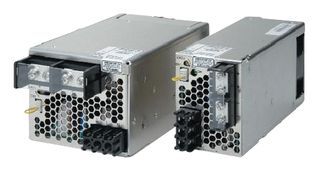

Product Images
