MountingChassis Mount
Power31.2W
Quick Jump:
Technical Specifications
TDK HWS30A-48/ME technical specifications.
General
| Approvals | CE |
| Current - Output 1 | 650mA |
| Efficiency | 83% |
| Height | 3.23inch |
| Isolation Voltage | 3kV |
| Length | 95mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 650mA |
| Max Output Power | 31.2W |
| Max Power Dissipation | 30W |
| Mount | Chassis Mount |
| Number of Outputs | 1 |
| Output Power | 31.2W |
| Output Voltage | 48V |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Series | HWS |
| Voltage - Output 1 | 48V |
| Weight | 8.465751oz |
| Width | 31.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK HWS30A-48/ME Datasheet
Download the complete datasheet for TDK HWS30A-48/ME to view detailed technical specifications.
No datasheet is available for this part.

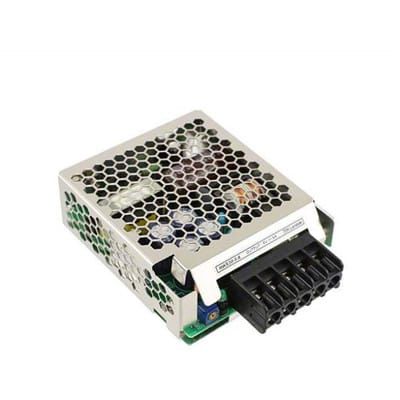

Product Images
