Board mount DC/DC converter, 50W output power, delivering 12V nominal output voltage at 4.3A. Features 85V to 265V AC input range, 3kV isolation voltage, and 81% efficiency. Operates from -10°C to 70°C with a compact 82mm x 26.5mm x 120mm chassis mount package.
Package120
MountingChassis Mount
Quick Jump:
Technical Specifications
TDK HWS50A-12/A technical specifications.
General
| Package/Case | 120 |
| Current - Output 1 | 4.3A |
| Depth | 120mm |
| Efficiency | 81% |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Length | 82mm |
| Max Current Rating | 650mA |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 4.3A |
| Max Output Power | 51.6W |
| Max Output Voltage | 14.4V |
| Min Output Voltage | 9.6V |
| Max Power Dissipation | 50W |
| Mount | Chassis Mount |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Output Current | 4.3A |
| Output Voltage | 12V |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Series | HWS-A (50W) |
| Voltage - Output 1 | 12V |
| Weight | 280g |
| Width | 26.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK HWS50A-12/A Datasheet
Download the complete datasheet for TDK HWS50A-12/A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

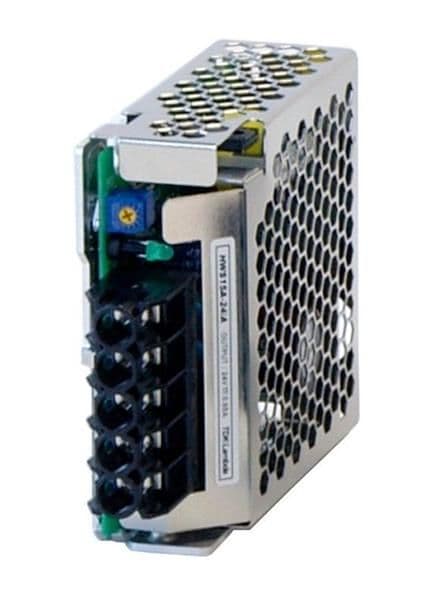

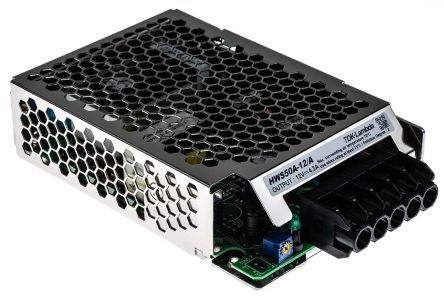

Product Images
